Part number	TGS2303
Manufacturer	TriQuint Semiconductor
File Size	340.72 KB
Description	SP3T VPIN
Datasheet	TGS2303 Datasheet

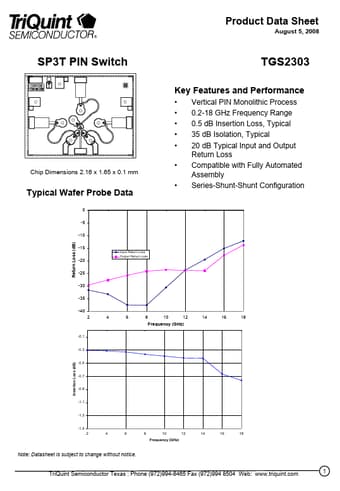

Additional preview pages of the TGS2303 datasheet.

Product details

Features

and Performance.
Vertical PIN Monolithic Process 0.2-18 GHz Frequency Range 0.5 dB Insertion Loss, Typical 35 dB Isolation, Typical 20 dB Typical Input and Output Return Loss Compatible with Fully Automated Assembly Series-Shunt-Shunt Configuration Chip Dimensions 2.16 x 1.65 x 0.1 mm.
Typical Wafer Probe Data 0 -5 -10 Return Loss (dB) -15 -20 -25 -30 -35 -40 2 4 6 8 10 12 14 16 18 Frequency (GHz) -0.1 -0.3 -0.5 -0.7 -0.9 -.
