TGS8250-SCC, SPDT FET Switch

Product Data Sheet SPDT FET Switch TGS8250-SCC Key .
The TriQuint TGS8250-SCC is a GaAs single-pole, double-throw (SPDT) FET monolithic switch designed to operate over the DC to 18 GHz frequency range.

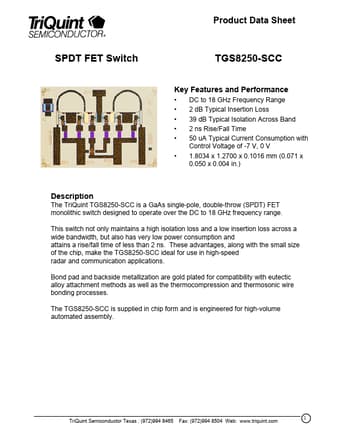

datasheet Preview Page 1 from Datasheet4u.com

TGS8250-SCC_TriQuintSemiconductor.pdf

TGS8250-SCC Datasheet Preview — Preview of TGS8250-SCC PDF

Datasheet Details

Part number:

TGS8250-SCC

Manufacturer:

TriQuint Semiconductor

File Size:

542.17 KB

Description:

SPDT FET Switch

Features

* and Performance
* DC to 18 GHz Frequency Range 2 dB Typical Insertion Loss 39 dB Typical Isolation Across Band 2 ns Rise/Fall Time 50 uA Typical Current Consumption with Control Voltage of -7 V, 0 V 1.8034 x 1.2700 x 0.1016 mm (0.071 x 0.050

Applications

* Bond pad and backside metallization are gold plated for compatibility with eutectic alloy attachment methods as well as the thermocompression and thermosonic wire bonding processes. The TGS8250-SCC is supplied in chip form and is engineered for high-volume automated assembly. TriQuint Semiconducto
