DS53-0005

Low Cost Three-Way GMIC SMT Power Divider 1850 . 1990 MHz

DS53-0005 Features

* Small Size and Low Profile Industry Standard SOIC-8 SMT Plastic Package Excellent Amplitude and Phase Balance Superior Repeatability Typical Insertion Loss: 1.0 dB Typical Isolation: 18 dB 1 Watt Power Handling SOIC-8 Descriptio

DS53-0005 General Description

M/A-COM’s DS53-0005 is an IC-based monolithic power divider using M/A-COM’s GMIC technology in a low cost SOIC-8 plastic package. This 3-way power divider is ideally suited for applications where small size, low insertion loss, superior phase/ amplitude tracking and low cost are required. Typical ap.

DS53-0005 Datasheet (59.39 KB)

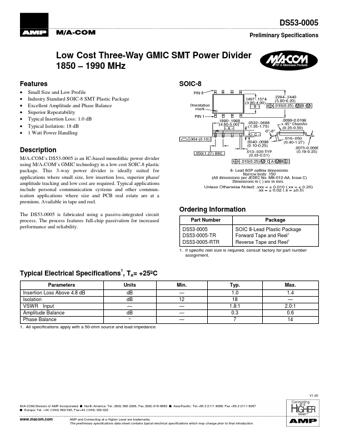

Preview of DS53-0005 PDF

Datasheet Details

Part number:

DS53-0005

Manufacturer:

Tyco Electronics

File Size:

59.39 KB

Description:

Low cost three-way gmic smt power divider 1850 . 1990 mhz.
Low Cost Three-Way GMIC SMT Power Divider DS53-0005 DS53-0005 Preliminary Specifications Low Cost Three-Way GMIC SMT Power Divider 1850

* 1.
