MASWSS0178 Datasheet, Switch, Tyco Electronics

MASWSS0178 Features

• Switch
• Positive Voltage Control: 0 / +5 V
• High Isolation: 55 dB @ 0.9 GHz 50 dB @ 1.9 GHz
• 50 Ω Internal Terminations
• Low Insertion Loss: 0.6 dB @ 0.9 GH

PDF File Details

Part number:

MASWSS0178

Manufacturer:

Tyco Electronics

File Size:

125.17kb

Download:

📄 Datasheet

Description:

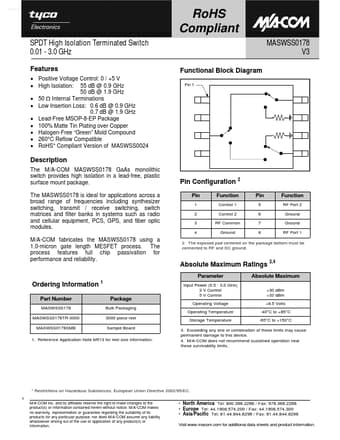

Spdt high isolation terminated switch. The M/A-COM MASWSS0178 GaAs monolithic switch provides high isolation in a lead-free, plastic surface mount package. The MASWSS0178 i

MASWSS0178 Application

• Applications across a broad range of frequencies including synthesizer switching, transmit / receive switching, switch matrices and filter banks in
