PCF-109D2M, PCF-106D2M, 25A Miniature Power PC Board Relay

Catalog 1308242 Issued 3-03 OEG PCF series 25A Miniature Power PC Board Relay Appliances, HVAC, Office Machines.UL File No.E58304 CSA File No.LR4.

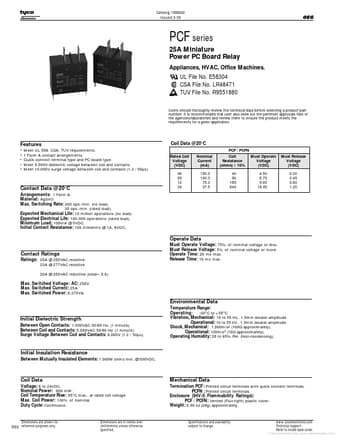

datasheet Preview Page 1 from Datasheet4u.com

PCF-106D2M_Tyco.pdf

PCF-109D2M Datasheet Preview — This datasheet PDF includes multiple part numbers: PCF-109D2M, PCF-106D2M. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PCF-109D2M, PCF-106D2M

Manufacturer:

Tyco

File Size:

296.18 KB

Description:

25A Miniature Power PC Board Relay

Note:

This datasheet PDF includes multiple part numbers: PCF-109D2M, PCF-106D2M.
Please refer to the document for exact specifications by model.

Features

* Meet UL 508, CSA, TUV requirements.
* 1 Form A contact arrangements.
* Quick connect terminal type and PC board type.
* Meet 5,000V dielectric voltage between coil and contacts.
* Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs). Coil Data
