PCF-124D2M, PCF-106D2M - 25A Miniature Power PC Board Relay

Tyco

📥 Download Datasheet

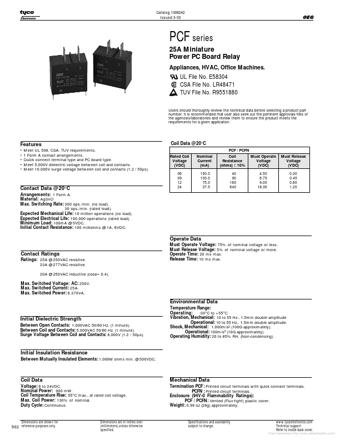

PCF-124D2M Datasheet Preview — This datasheet PDF includes multiple part numbers: PCF-124D2M, PCF-106D2M. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	PCF-124D2M, PCF-106D2M
Manufacturer	Tyco
File Size	296.18 KB
Description	25A Miniature Power PC Board Relay
Datasheet	PCF-106D2M_Tyco.pdf
Note	This datasheet PDF includes multiple part numbers: PCF-124D2M, PCF-106D2M. Please refer to the document for exact specifications by model.

PCF-124D2M Product details

Features

Meet UL 508, CSA, TUV requirements.
1 Form A contact arrangements.
Quick connect terminal type and PC board type.
Meet 5,000V dielectric voltage between coil and contacts.
Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs). Coil Data @ 20°C PCF / PCFN Rated Coil Voltage (VDC) 06 09 12 24 Nominal Current (mA) 150.0 100.0 75.0 37.5 Coil Resistance (ohms) ± 10% 40 90 160 640 Must Operate Voltage (VDC) 4.50 6.75 9.00 18.00 Must Releas.
