PCF-118D2M, PCF-106D2M Datasheet - Tyco

PCF-118D2M - 25A Miniature Power PC Board Relay

PCF-118D2M Features

* Meet UL 508, CSA, TUV requirements.

* 1 Form A contact arrangements.

* Quick connect terminal type and PC board type.

* Meet 5,000V dielectric voltage between coil and contacts.

* Meet 10,000V surge voltage between coil and contacts (1.2 / 50µs). Coil Data

PCF-106D2M_Tyco.pdf

This datasheet PDF includes multiple part numbers: PCF-118D2M, PCF-106D2M. Please refer to the document for exact specifications by model.

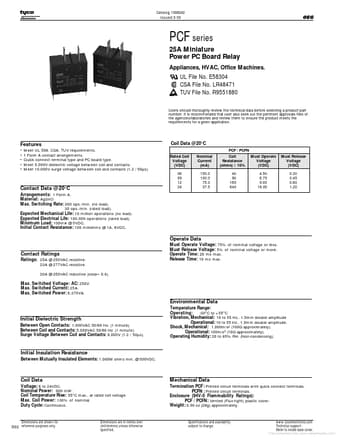

PCF-118D2M Datasheet Preview Page 2

Datasheet Details

Part number:

PCF-118D2M, PCF-106D2M

Manufacturer:

Tyco

File Size:

296.18 KB

Description:

25a miniature power pc board relay.

Note:

This datasheet PDF includes multiple part numbers: PCF-118D2M, PCF-106D2M.
Please refer to the document for exact specifications by model.
