V23086-C2001-A403 Datasheet, Relays, Tyco

V23086-C2001-A403 Features

• Relays - Smallest twin relay - Minimal weight (0.28 oz. / 8 g) - Maximum continuous current 30 A - Two separate systems Typical applications - Rear window and seat heating - Wiper and indicat

PDF File Details

Part number:

V23086-C2001-A403

Manufacturer:

Tyco

File Size:

225.35kb

Download:

📄 Datasheet

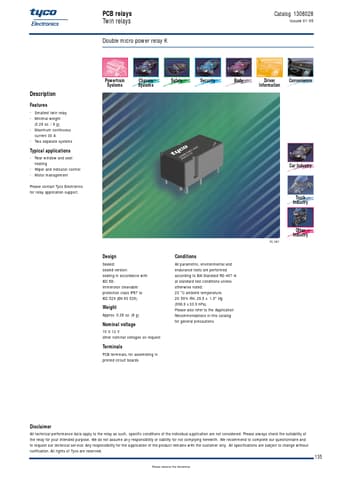

Description:

Twin relays. Features - Smallest twin relay - Minimal weight (0.28 oz. / 8 g) - Maximum continuous current 30 A - Two separate systems Typical ap

V23086-C2001-A403 Application

• Applications - Rear window and seat heating - Wiper and indicator control - Motor management Please contact Tyco Electronics for relay application s
