QM3001D Datasheet - UBIQ

P-Ch 30V Fast Switching MOSFETs

QM3001D Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS -30V RDSON 42mΩ ID -20A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Netwo

QM3001D General Description

The QM3001D is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The QM3001D meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliabi.

QM3001D Datasheet (324.05 KB)

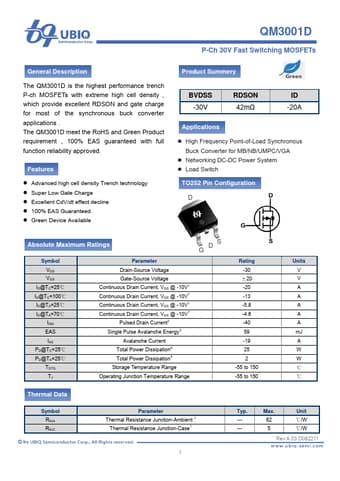

Preview of QM3001D PDF

Datasheet Details

Part number:

QM3001D

Manufacturer:

UBIQ

File Size:

324.05 KB

Description:

P-ch 30v fast switching mosfets.
