Datasheet Details
| Part number | FDV303N |
|---|---|
| Manufacturer | UMW |
| File Size | 720.19 KB |
| Description | 25V N-ChanneI MOSFET |
| Datasheet |
 FDV303N-UMW.pdf
|
| Part number | FDV303N |
|---|---|
| Manufacturer | UMW |
| File Size | 720.19 KB |
| Description | 25V N-ChanneI MOSFET |
| Datasheet |
FDV303N-UMW.pdf
|

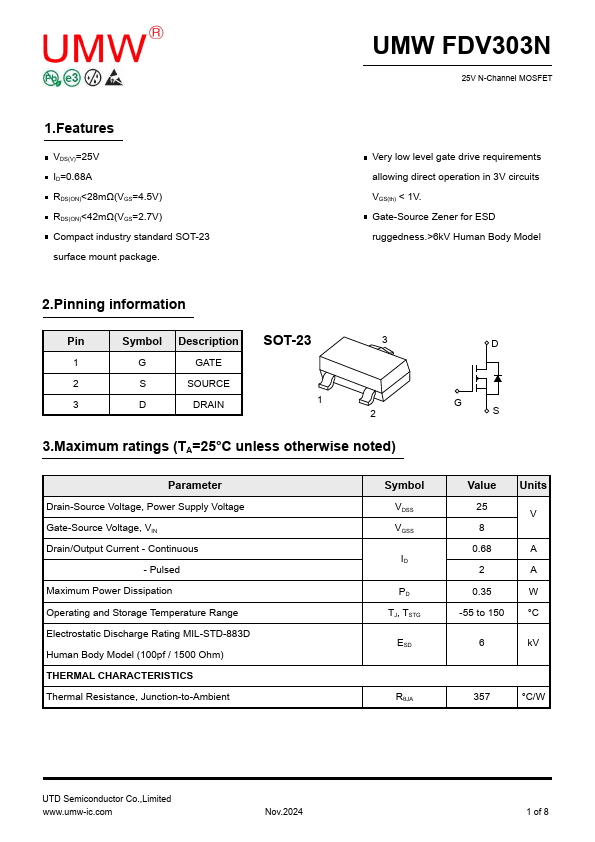

SOT-23 3 1 G GATE 2 S SOURCE 3 D DRAIN 1 2 3.Maximum ratings (TA=25°C unless otherwise noted) Parameter Drain-Source Voltage, Power Supply Voltage Gate-Source Voltage, VIN Drain/Output Current - Continuous - Pulsed Maximum Power Dissipation Operating and Storage Temperature Range Electrostatic Discharge Rating MIL-STD-883D Human Body Model (100pf / 1500 Ohm) THERMAL CHARACTERISTICS Thermal Resistance, Junction-to-Ambient Symbol VDSS VGSS ID PD TJ, TSTG ESD RθJA D G S Value 25 8 0
