SI2305A - P-Channel MOSFET

Datasheet Summary

Features

  • s.
  • VDS (V) = -20V.
  • RDS(ON)＜40mΩ(VGS=-4.5V),ID=-4.2A.
  • RDS(ON)＜50mΩ(VGS=-2.5V),ID=-3.4A UMW SI2305A P-Channel MOSFET SOT.
  • 23 D G S 1. GATE 2. SOURCE 3. DRAIN.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-source voltage Gate-source voltage Continuous drain current -- Pulsed drain current TA=25℃ TA=70℃ Power dissipation -- TA=25℃ TA=70℃ Thermal Resistance. Junction-to-Ambient Operating junction and storage temperature range Symbol VDS VGS ID IDM PD RθJA Tj,.

📥 Download Datasheet

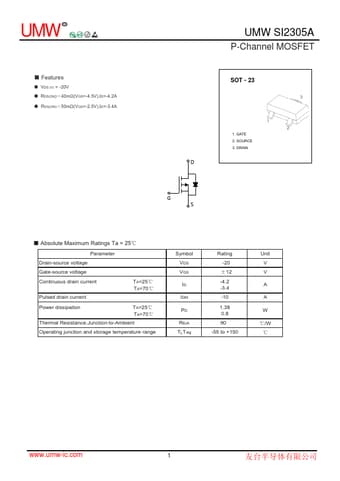

Datasheet preview – SI2305A
