Download Datasheet (366.56 KB)
P0804BK
UNIKC
366.56 KB
Mosfet.

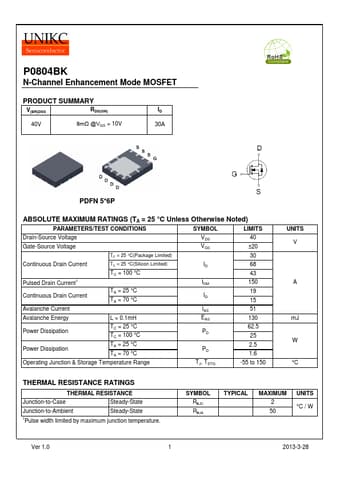

P0804BK
N-Channel Enhancement Mode MOSFET
PRODUCT SUMMARY
V(BR)DSS
RDS(ON)
40V 8mΩ @VGS = 10V
I.
D 30A
PDFN 5*6P
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted)
PARAMETERS/TEST COND.
