P0804BVG - N-Channel MOSFET

P0804BVG N-Channel Logic Level Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 40V 12mΩ @VGS = 10V ID 12A SOP- 08 100% UIS tested 100% Rg tested ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC= 100 °C ID IDM 12 8 50 Power Dissipation TC = 25 °C TC = 100 °C PD 2.5 1 Operating Junction & Storage Temperature Range Lead Temperat.

P0804BVG-UNIKC.pdf

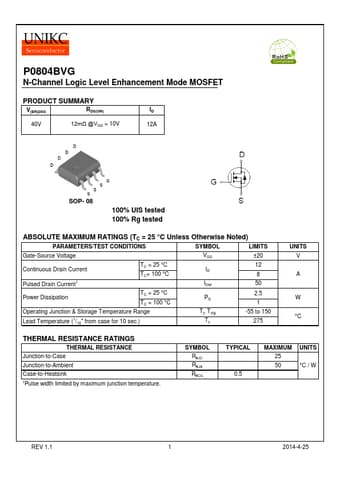

P0804BVG Datasheet Preview — Preview of P0804BVG PDF

Datasheet Details

Part number:

P0804BVG

Manufacturer:

UNIKC

File Size:

369.39 KB

Description:

N-channel mosfet.
