U74LVC3G14 Datasheet - UTC

U74LVC3G14 TRIPLE SCHMITT-TRIGGER INVERTER

The U74LVC3G14 is designed as three independent Inverters with Schmitt-trigger action. it may have different input threshold levels for positive-going (VT+) and negative-going (VT *) signals. This device has power-down protective circuit, preventing device destruction when it is powered down..

U74LVC3G14 Features

* Wide supply voltage range from 1.65V to 5.5V

* Inputs accept voltages up to 5.5V

* IOFF supports partial-power-down mode

* Low static power consumption; ICC=10μA (Max.)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC3G14L-S08-R U74LVC3G14G-S08-R U74L

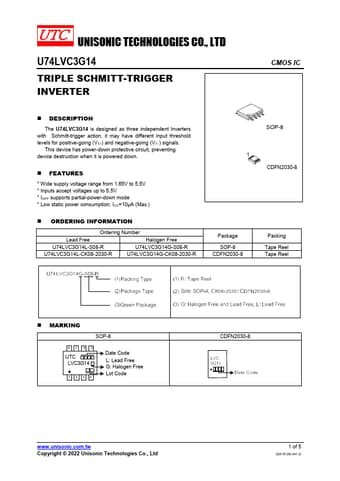

U74LVC3G14 Datasheet (640.01 KB)

U74LVC3G14 Datasheet Preview — Preview of U74LVC3G14 PDF

Datasheet Details

Part number:

U74LVC3G14

Manufacturer:

UTC

File Size:

640.01 KB

Description:

Triple schmitt-trigger inverter.
