U74LVC34A - HEX BUFFER

Unisonic Technologies

📥 Download Datasheet

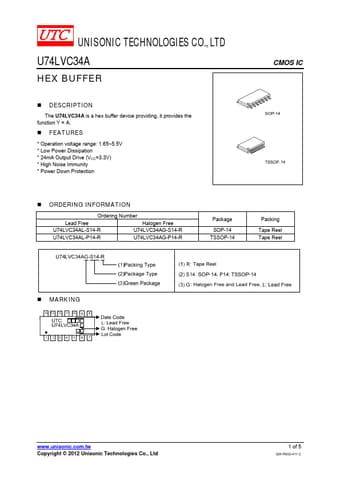

U74LVC34A Datasheet Preview — Preview of U74LVC34A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC34A
Manufacturer	Unisonic Technologies
File Size	199.81 KB
Description	HEX BUFFER
Datasheet	U74LVC34A_UnisonicTechnologies.pdf

U74LVC34A Product details

Description

The U74LVC34A is a hex buffer device providing, it provides the function Y = A.

Features

S.
Operation voltage range: 1.65~5.5V.
Low Power Dissipation.
24mA Output Drive (VCC=3.3V).
High Noise Immunity.
Power Down Protection CMOS IC.
