ULV1012 Datasheet - UTC

ULV1012 PRE-AMPLIFIED

The UTC ULV1012 is high gain, high impedance per-amplifier which is designed to replace the JFET amplifier currently being used. The UTC ULV1012 audio amplifiers are specified to operate over a 2.2V to 5.0V supply voltage range with fixed gains of 7.8dB, 15.6dB, 20.9dB, and 23.8dB. The devices offer.

ULV1012 Features

* Typical ULV1012-15, 2.2V Supply, RL=2.2kΩ, C=2.2μF, VIN=18mVPP, Unless Otherwise Specified

* Supply Voltage: 2V ~ 5V

* Supply Current:

ULV1012 Datasheet (194.89 KB)

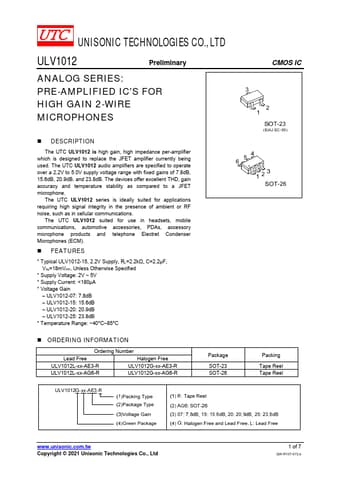

Preview of ULV1012 PDF

Datasheet Details

Part number:

ULV1012

Manufacturer:

UTC

File Size:

194.89 KB

Description:

Pre-amplified.
