ULV333 Datasheet - UTC

ULV333 RAIL-TO-RAIL INPUT/OUTPUT CMOS SINGLE OPERATIONAL AMPLIFIERS

The UTC ULV333 CMOS single operational amplifiers provide very low offset voltage and zero-drift over time and temperature. The miniature, high precision, low quiescent current amplifiers offer high-impedance inputs that have a wide input common mode range of 100mV beyond the rails and rail-to-rail.

ULV333 Features

* Supply Voltage Range: 1.8V ~ 5.5V

* Supply Current: 120μA/Amplifier (Typ.)

* Low Offset Voltage: 25μV (Max.)

* Rail-to-Rail Input / Output

* Slew Rate: 0.25V/µs (Typ.)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free ULV333L-S08-R ULV333G-S08-R Package S

ULV333-UTC.pdf

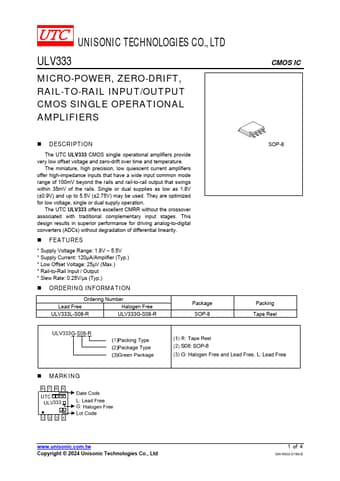

Preview of ULV333 PDF
ULV333 Datasheet Preview Page 2 ULV333 Datasheet Preview Page 3

Datasheet Details

Part number:

ULV333

Manufacturer:

UTC

File Size:

173.84 KB

Description:

Rail-to-rail input/output cmos single operational amplifiers.
