ULV1546 20V HIGH CURRENT DRIVE RAIL-TO-RAIL VCOM/GAMMA BUFFER

The UTC ULV1546 is the quadruple high voltage rail-to-rail Vcom/Gamma Buffer with low power dissipation. Operating on power supplies ranging from 5V to 20V, while current consuming is less than 1.2mA / per amplifier. Rail-to-rail output capability and common mode input ability beyond the rails enabl.

ULV1546 Features

* Wide Supply Operation Range +5V~+20V

* Beyond the rails input capability

* Rail-to-rail output swing

* Low supply current, 1.2mA per amplifier (typical)

* Wide bandwidth (unit gain) 30MHz-3dB bandwidth

* 300mA peak output AC current (typ.)

* High slew rate=30V/µs

ULV1546 Datasheet (152.10 KB)

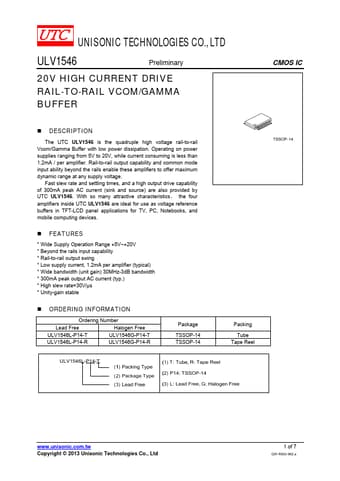

ULV1546 Datasheet Preview — Preview of ULV1546 PDF

Datasheet Details

Part number:

ULV1546

Manufacturer:

Unisonic Technologies

File Size:

152.10 KB

Description:

20v high current drive rail-to-rail vcom/gamma buffer.
