ULV2702, NANOPOWER OPERATIONAL AMPLIFIERS AND PUSH-PULL COMPARATORS

UNISONIC TECHNOLOGIES CO., LTD ULV2702 Advance NANOPOWER OPERATIONAL AMPLIFIERS AND PUSH-PULL COMPARATORS * .
The UTC ULV2702 includes sub-micropower operational amplifier and comparator into a single package that produces excellent micropower signal condition.

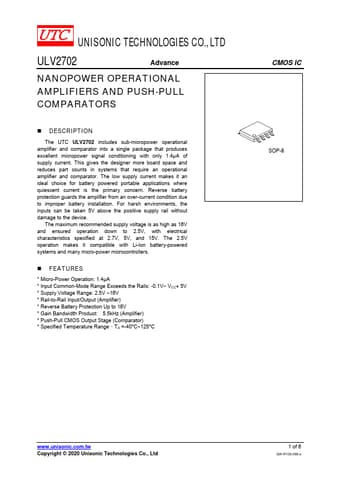

datasheet Preview Page 1 from Datasheet4u.com

ULV2702-UTC.pdf

ULV2702 Datasheet Preview — Preview of ULV2702 PDF

Datasheet Details

Part number:

ULV2702

Manufacturer:

UTC

File Size:

177.23 KB

Description:

NANOPOWER OPERATIONAL AMPLIFIERS AND PUSH-PULL COMPARATORS

Features

* Micro-Power Operation: 1.4µA
* Input Common-Mode Range Exceeds the Rails: -0.1V~ VCC+ 5V
* Supply Voltage Range: 2.5V ~16V
* Rail-to-Rail Input/Output (Amplifier)
* Reverse Battery Protection Up to 18V
* Gain Bandwidth Product: 5.5kHz (Amplifier)
* Push-Pull CMOS Output

Applications

* where quiescent current is the primary concern. Reverse battery protection guards the amplifier from an over-current condition due to improper battery installation. For harsh environments, the inputs can be taken 5V above the positive supply rail without damage to the device. The maximum recommended
