ULV2333 Datasheet - UTC

ULV2333 RAIL-TO-RAIL INPUT/OUTPUT CMOS DUAL OPERATIONAL AMPLIFIERS

The UTC ULV2333 CMOS dual operational amplifiers provide very low offset voltage and zero-drift over time and temperature. The miniature, high precision, low quiescent current amplifiers offer high-impedance inputs that have a wide input common mode range of 100mV beyond the rails and rail-to-rail .

ULV2333 Features

* Supply Voltage Range: 1.8V ~ 5.5V

* Supply Current: 80μA/Amplifier (Typ.)

* Low Offset Voltage: 25μV (Max.)

* Rail-to-Rail Input / Output

* Slew Rate: 0.25V/µs (Typ.)

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free ULV2333L-S08-R ULV2333G-S08-R ULV2333L

ULV2333 Datasheet (186.32 KB)

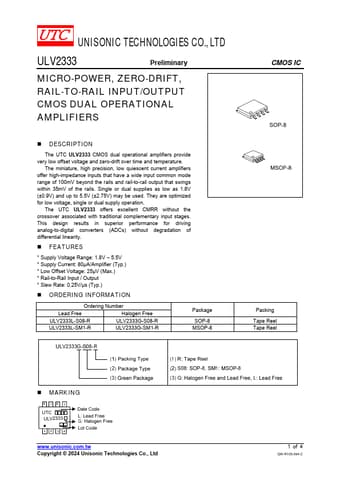

ULV2333 Datasheet Preview — Preview of ULV2333 PDF

Datasheet Details

Part number:

ULV2333

Manufacturer:

UTC

File Size:

186.32 KB

Description:

Rail-to-rail input/output cmos dual operational amplifiers.
