UTCUA8868, LINEAR INTEGRATED CIRCUIT

www.DataSheet4U.com UTC UA8868 5-CHANNEL BTL DRIVER FOR DVD PLAYER .
The UTC UA8868 is a five-channel BTL driver IC for driving the motors and actuators such as used in DVD player and CD-ROM.

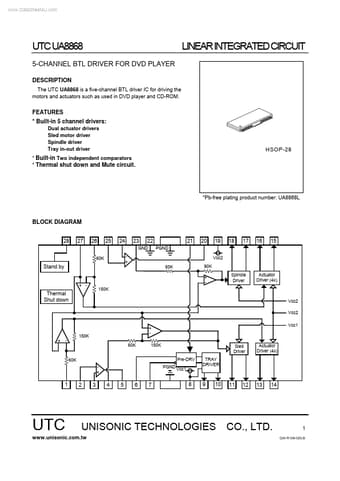

datasheet Preview Page 1 from Datasheet4u.com

UTCUA8868_UTC.pdf

UTCUA8868 Datasheet Preview — Preview of UTCUA8868 PDF

Datasheet Details

Part number:

UTCUA8868

Manufacturer:

UTC

File Size:

182.05 KB

Description:

LINEAR INTEGRATED CIRCUIT

Features

* Built-in 5 channel drivers: Dual actuator drivers Sled motor driver Spindle driver Tray in-out driver
* Built-in Two independent comparators
* Thermal shut down and Mute circuit. HSOP-28
* Pb-free plating product number: UA8868L BLOCK DIAGRAM 28 27 26 60K 25 24 + 23 22 PGND
