UTCULN2003, SEVEN DARLINGTON ARRAYS

UTC ULN2003 LINEAR INTEGRATED CIRCUIT SEVEN DARLINGTON ARRAYS .
The UTC ULN2003 is high-voltage,high-current darlighton drivers comprised of seven NPN darlington pairs. Output current (single output).

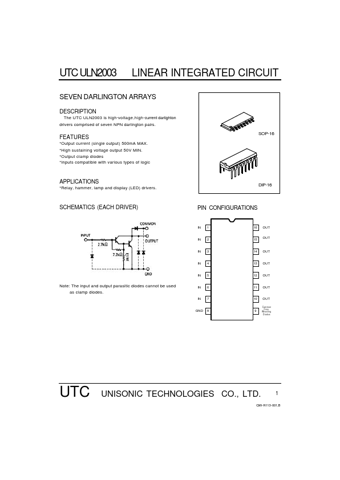

datasheet Preview Page 1 from Datasheet4u.com

UTCULN2003_UnisonicTechnologies.pdf

UTCULN2003 Datasheet Preview — Preview of UTCULN2003 PDF

Datasheet Details

Part number:

UTCULN2003

Manufacturer:

Unisonic Technologies

File Size:

485.14 KB

Description:

SEVEN DARLINGTON ARRAYS

Features

* Output current (single output) 500mA MAX.
* High sustaining voltage output 50V MIN.
* Output clamp diodes

Applications

* Relay, hammer, lamp and display (LED) drivers. DIP-16 SCHEMATICS (EACH DRIVER) PIN CONFIGURATIONS IN 1 16 OUT OUT IN 2 15 IN 3 14 OUT IN 4 13 OUT IN 5 12 OUT Note: The input and output parasitic diodes cannot be used as clamp diodes. IN 6 11 OUT IN 7 10 OUT Common
