UTCUR0033, LINEAR INTEGRATED CIRCUIT

www.DataSheet4U.com UTC UR0033 LINEAR INTEGRATED CIRCUIT 2 CHANNEL LOW-DROPOUT VOLTAGE REGULATOR .

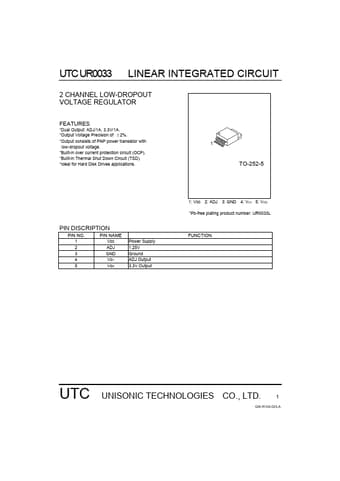

datasheet Preview Page 1 from Datasheet4u.com

UTCUR0033_UTC.pdf

UTCUR0033 Datasheet Preview — Preview of UTCUR0033 PDF

Datasheet Details

Part number:

UTCUR0033

Manufacturer:

UTC

File Size:

185.77 KB

Description:

LINEAR INTEGRATED CIRCUIT

Features

* Dual Output: ADJ/1A, 3.3V/1A.
* Output Voltage Precision of ±2%.
* Output consists of PNP power transistor with low-dropout voltage.
* Built-in over current protection circuit (OCP).
* Built-in Thermal Shut Down Circuit (TSD).

Applications

* 1 TO-252-5 1: Vcc 2: ADJ 3: GND 4: Vo1 5: VO2
* Pb-free plating product number: UR0033L PIN DISCRIPTION PIN NO. 1 2 3 4 5 PIN NAME Vcc ADJ GND Vo1 Vo2 Power Supply 1.25V Ground ADJ Output 3.3V Output FUNCTION UTC UNISONIC TECHNOLOGIES CO. , LTD. 1 QW-R102-023,A UTC UR0033 BLOCK DIA
