UTCUR3325, LINEAR INTEGRATED CIRCUIT

UTC UR3325 LINEAR INTEGRATED CIRCUIT 2 CHANNEL LOW-DROPOUT VOLTAGE REGULATOR .

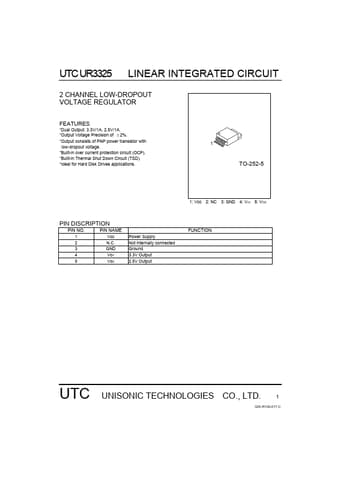

datasheet Preview Page 1 from Datasheet4u.com

UTCUR3325_UnisonicTechnologies.pdf

UTCUR3325 Datasheet Preview — Preview of UTCUR3325 PDF

Datasheet Details

Part number:

UTCUR3325

Manufacturer:

Unisonic Technologies

File Size:

158.60 KB

Description:

LINEAR INTEGRATED CIRCUIT

Features

* Dual Output: 3.3V/1A, 2.5V/1A.
* Output Voltage Precision of ±2%.
* Output consists of PNP power transistor with low-dropout voltage.
* Built-in over current protection circuit (OCP).
* Built-in Thermal Shut Down Circuit (TSD).

Applications

* 1 TO-252-5 1: Vcc 2: NC 3: GND 4: Vo1 5: VO2 PIN DISCRIPTION PIN NO. 1 2 3 4 5 PIN NAME Vcc N. C. GND Vo1 Vo2 Power Supply Not internally connected Ground 3.3V Output 2.5V Output FUNCTION UTC UNISONIC TECHNOLOGIES CO. , LTD. 1 QW-R102-017,C UTC UR3325 BLOCK DIAGRAM Vcc PIN 1 LINEAR INT
