TPD65R520D

650V Super-Junction Power MOSFET

Unigroup

TPD65R520D Features

* Very low FOM RDS(on)×Qg

* 100% avalanche tested

* RoHS compliant APPLICATIONS

* Switch Mode Power Supply (SMPS)

* Uninterruptible Power Supply (UPS)

* Power Factor Correction (PFC) Device Marking and Package Information Device Package TPD65R520D TO-252 Key Performanc

TPD65R520D General Description

650V super-junction Power MOSFET Super-junction power MOSFET is a revolutionary technology for high voltage power MOSFETs， designed according to the SJ principle. The SJ MOSFET is a price-performance optimized product enabling to target cost sensitive applications in Consumer and Lighting markets ， .

TPD65R520D Datasheet (1.07 MB)

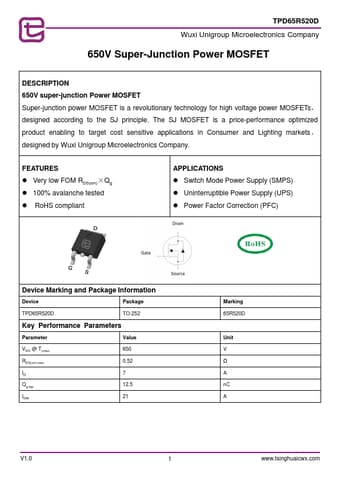

TPD65R520D Datasheet Preview — Preview of TPD65R520D PDF

Datasheet Details

Part number:

TPD65R520D

Manufacturer:

Unigroup

File Size:

1.07 MB

Description:

650v super-junction power mosfet.
