TPD6F003, TPD8F003 - EMI Filters

Texas Instruments

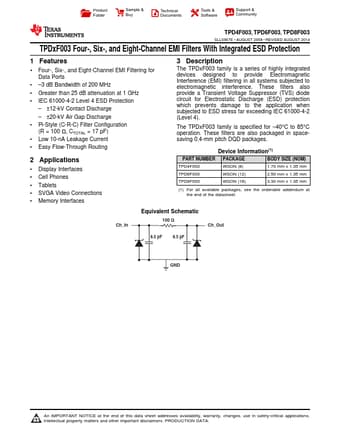

TPD6F003 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPD6F003, TPD8F003. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TPD6F003, TPD8F003
Manufacturer	Texas Instruments ↗
File Size	1.49 MB
Description	EMI Filters
Datasheet	TPD8F003-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPD6F003, TPD8F003. Please refer to the document for exact specifications by model.

TPD6F003 Product details

Description

The TPDxF003 family is a series of highly integrated devices designed to provide Electromagnetic Interference (EMI) filtering in all systems subjected to electromagnetic interference. 40°C to 85°C operation.

Features

1 Four-, Six-, and Eight-Channel EMI Filtering for Data Ports.
3 dB Bandwidth of 200 MHz.
Greater than 25 dB attenuation at 1 GHz.
IEC 61000-4-2 Level 4 ESD Protection.
±12-kV Contact Discharge.
±20-kV Air Gap Discharge.
Pi-Style (C-R-C) Filter Configuration (R = 100 Ω, CTOTAL = 17 pF).
Low 10-nA Leakage Current.
Easy Flow-Through Routing 2.
