TPD6F202, TPD4F202 - Four or Six-Channel EMI Filter

Texas Instruments

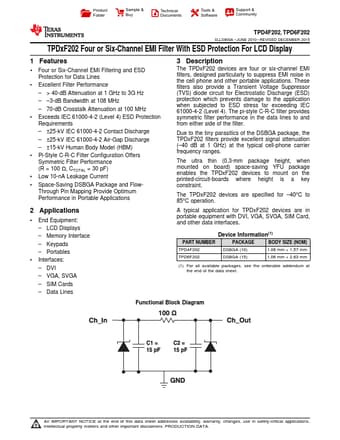

TPD6F202 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPD6F202, TPD4F202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TPD6F202, TPD4F202
Manufacturer	Texas Instruments ↗
File Size	1.01 MB
Description	Four or Six-Channel EMI Filter
Datasheet	TPD4F202-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPD6F202, TPD4F202. Please refer to the document for exact specifications by model.

TPD6F202 Product details

Description

The TPDxF202 devices are four or six-channel EMI filters, designed particularly to suppress EMI noise in the cell phone and other portable applications.

Features

1 Four or Six-Channel EMI Filtering and ESD Protection for Data Lines.
Excellent Filter Performance.
> 40-dB Attenuation at 1 GHz to 3G Hz.
3-dB Bandwidth at 108 MHz.
70-dB Crosstalk Attenuation at 100 MHz.
Exceeds IEC 61000-4-2 (Level 4) ESD Protection Requirements.
±25-kV IEC 61000-4-2 Contact Discharge.
±25-kV IEC 61000-4-2 Air-Gap Discharge.
±15-kV Human Body Model (HBM).
Pi-Style C-R-C Filter.
