TPD6F002 - Six-Channel EMI Filter

Texas Instruments

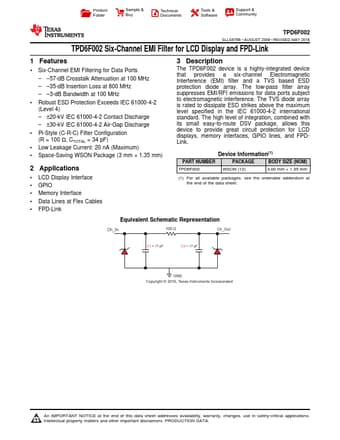

TPD6F002 Datasheet Preview — Preview of TPD6F002 PDF

Datasheet Details

Part number	TPD6F002
Manufacturer	Texas Instruments ↗
File Size	948.01 KB
Description	Six-Channel EMI Filter
Datasheet	TPD6F002-etcTI.pdf

TPD6F002 Product details

Description

The TPD6F002 device is a highly-integrated device that provides a six-channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array.

Features

1 Six-Channel EMI Filtering for Data Ports.
57-dB Crosstalk Attenuation at 100 MHz.
35-dB Insertion Loss at 800 MHz.
3-dB Bandwidth at 100 MHz.
Robust ESD Protection Exceeds IEC 61000-4-2 (Level 4).
±20-kV IEC 61000-4-2 Contact Discharge.
±30-kV IEC 61000-4-2 Air-Gap Discharge.
Pi-Style (C-R-C) Filter Configuration (R = 100 Ω, CTOTAL = 34 pF).
Low Leakage Current: 20 nA (Maximum).
