TPD6F002-Q1 - Automotive ESD Protection and EMI Filter

Texas Instruments

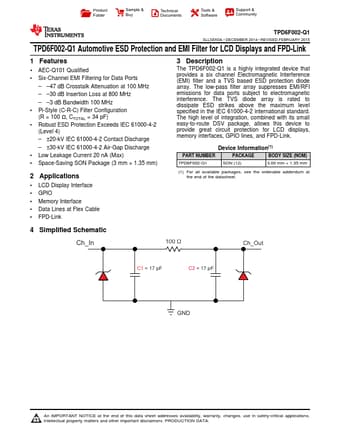

TPD6F002-Q1 Datasheet Preview — Preview of TPD6F002-Q1 PDF

Datasheet Details

Part number	TPD6F002-Q1
Manufacturer	Texas Instruments ↗
File Size	953.59 KB
Description	Automotive ESD Protection and EMI Filter
Datasheet	TPD6F002-Q1-etcTI.pdf

TPD6F002-Q1 Product details

Description

The TPD6F002-Q1 is a highly integrated device that provides a six channel Electromagnetic Interference (EMI) filter and a TVS based ESD protection diode array.

Features

1 AEC-Q101 Qualified.
Six-Channel EMI Filtering for Data Ports.
47 dB Crosstalk Attenuation at 100 MHz.
30 dB Insertion Loss at 800 MHz.
3 dB Bandwidth 100 MHz.
Pi-Style (C-R-C) Filter Configuration (R = 100 Ω, CTOTAL = 34 pF).
Robust ESD Protection Exceeds IEC 61000-4-2 (Level 4).
±20-kV IEC 61000-4-2 Contact Discharge.
±30-kV IEC 61000-4-2 Air-Gap Discharge.
Low Leakage Current.
