U74HC4053 - TRIPLE 2-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER

Unisonic Technologies

📥 Download Datasheet

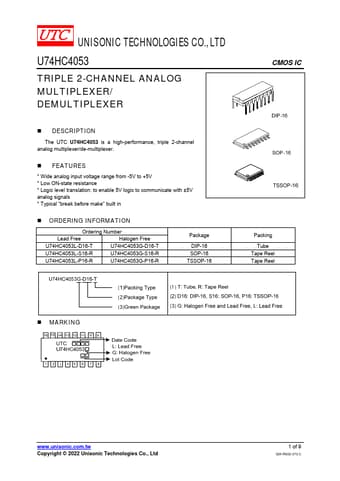

U74HC4053 Datasheet Preview — Preview of U74HC4053 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74HC4053
Manufacturer	Unisonic Technologies
File Size	262.42 KB
Description	TRIPLE 2-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER
Datasheet	U74HC4053-UnisonicTechnologies.pdf

U74HC4053 Product details

Description

The UTC U74HC4053 is a high-performance, triple 2-channel analog multiplexer/de-multiplexer.

Features

S.
Wide analog input voltage range from -5V to +5V.
Low ON-state resistance.
Logic level translation: to enable 5V logic to communicate with ±5V analog signals.
Typical “break before make” built in.
