U74HC123 - DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR

Product Overview

UTC

U74HC123 DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR by UTC - Datasheet Preview — Datasheet preview – U74HC123

Datasheet Details

Part number	U74HC123
Manufacturer	UTC
File Size	312.11 KB
Description	DUAL RETRIGGERABLE MONOSTABLE MULTIVIBRATOR
Datasheet	U74HC123 Datasheet

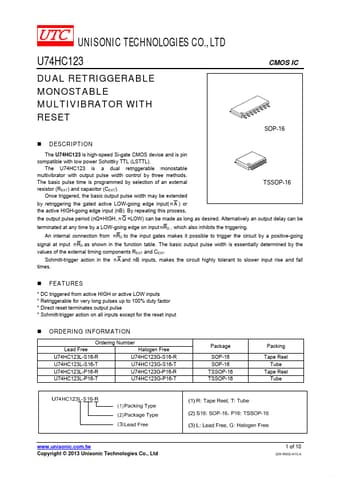

Additional preview pages of the U74HC123 datasheet.

Product details

Description

CMOS IC The U74HC123 is high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL).The U74HC123 is a dual retriggerable monostable multivibrator with output pulse width control by three methods.The basic pulse time is programmed by selection of an external resistor (REXT) and capacitor (CEXT).Once triggered, the basic output pulse width may be extended by retriggering the gated active LOW-going edge input( n A ) or the active HIGH-going edge input (nB).By repe

Features

ES.
DC triggered from active HIGH or active LOW inputs.
Retriggerable for very long pulses up to 100% duty factor.
Direct reset terminates output pulse.
Schmitt-trigger action on all inputs except for the reset input.
