U74HC02 - HCQUADRUPLE 2-INPUT NOR GATES

U74HC02 Description

UNISONIC TECHNOLOGIES CO., LTD U74HC02 QUADRUPLE 2-INPUT NOR GATES * .
The U74HC02 contains four independent 2-input NOR gates, which provides the Function Y=A+B in positive logic. FEATURES. Operation voltage.

U74HC02 Features

* Operation voltage range:
* Low Quiescent Current:
* High speed:
* Low input current: 2~6V ICC=2uA(Max) tPD=8ns (Typ. ) VCC=6V 100nA Max
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC02L-D14-T U74HC02G-D14-T U74HC02L-UEA-R U74HC02G-UEA-R U74HC02L-U

📥 Download Datasheet

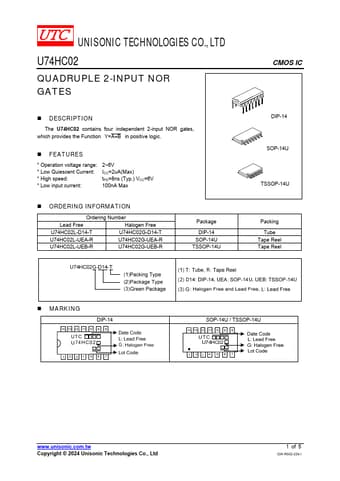

Preview of U74HC02 PDF
