U74HC21 Datasheet, Gates, Unisonic Technologies

U74HC21 Features

  • Gates
  • Operation Voltage Range: 2~6V
  • Low Quiescent Current: ICC=2µA (Max.)
  • High Speed: tPD=11ns (Typ.)
  • Low Input Current: 100nA (Max.)

PDF File Details

Part number:

U74HC21

Manufacturer:

Unisonic Technologies

File Size:

172.56kb

Download:

📄 Datasheet

Description:

Dual 4-input and gates. The U74HC21 contains two independent 4-input AND gates.They perform the Boolean function Y=A

  • B
  • C
  • D or Y

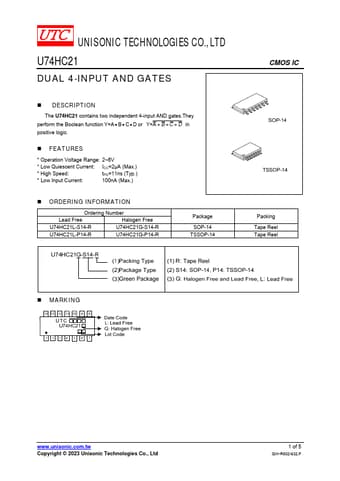

  • Datasheet Preview: U74HC21 📥 Download PDF (172.56kb)
    Page 2 of U74HC21 Page 3 of U74HC21
