U74HC245 Datasheet, Transceivers, Unisonic Technologies

U74HC245 Features

  • Transceivers
  • Operate from 2V to 6V
  • Max tPD is 18ns at 6V
  • ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC245L-D20-T U74HC245G-D20-T U74HC245L-S2

PDF File Details

Part number:

U74HC245

Manufacturer:

Unisonic Technologies

File Size:

230.78kb

Download:

📄 Datasheet

Description:

Octal bus transceivers. The U74HC245 is designed for the asynchronous communication between data buses. While the direction-control(DIR) is high, data transm

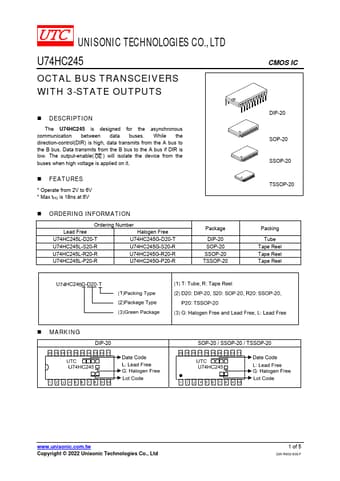

Datasheet Preview: U74HC245 📥 Download PDF (230.78kb)
Page 2 of U74HC245 Page 3 of U74HC245
