U74HC2G02 - 2-INPUT NOR GATE

Product Overview

UTC

📥 Download Datasheet

U74HC2G02 2-INPUT NOR GATE by UTC - Datasheet Preview — Datasheet preview – U74HC2G02

Datasheet Details

Part number	U74HC2G02
Manufacturer	UTC
File Size	160.43 KB
Description	2-INPUT NOR GATE
Datasheet	U74HC2G02 Datasheet

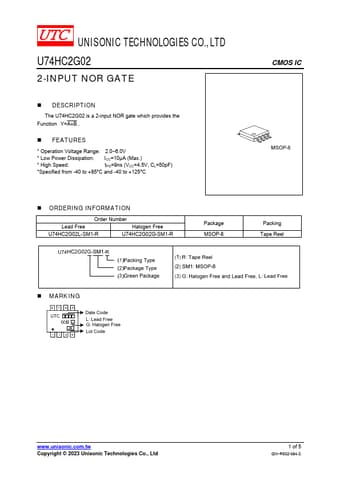

Additional preview pages of the U74HC2G02 datasheet.

Product details

Description

The U74HC2G02 is a 2-input NOR gate which provides the Function Y=A+B .

Features

S.
Operation Voltage Range: 2.0~6.0V.
Low Power Dissipation: ICC=10μA (Max. ).
High Speed: tPD=9ns (VCC=4.5V, CL=50pF).
Specified from -40 to +85°C and -40 to +125°C.
