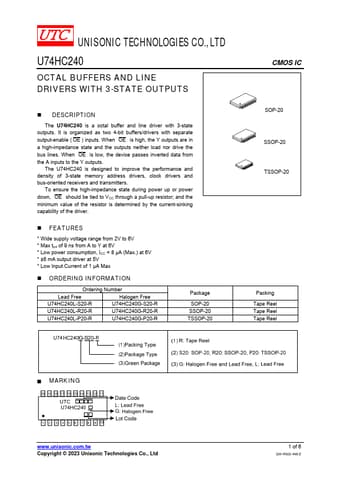

U74HC240 Datasheet, Drivers, Unisonic Technologies

U74HC240 Features

• Drivers
• Wide supply voltage range from 2V to 6V
• Max tpd of 9 ns from A to Y at 6V
• Low power consumption, ICC = 8 μA (Max.) at 6V
• ±6 mA output driver at

PDF File Details

Part number:

U74HC240

Manufacturer:

Unisonic Technologies

File Size:

251.03kb

Download:

📄 Datasheet

Description:

Octal buffers and line drivers. The U74HC240 is a octal buffer and line driver with 3-state outputs. It is organized as two 4-bit buffers/drivers with separate outpu
