U74HC20 - DUAL 4-INPUT NAND GATES

U74HC20 Description

UNISONIC TECHNOLOGIES CO., LTD U74HC20 DUAL 4-INPUT NAND GATES * .
The U74HC20 contains two independent 4-input NAND gates. B. C. D or Y=A  B  C  D in positive l.

U74HC20 Features

* Operation voltage range:
* Low Quiescent Current:
* High speed:
* Low input current: 2~6V ICC=2µA (Max. ) tPD=11ns (Typ. ) 100nA (Max. )
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC20L-S14-R U74HC20G-S14-R U74HC20L-P14-R U74HC20G-P14-R Package SOP

📥 Download Datasheet

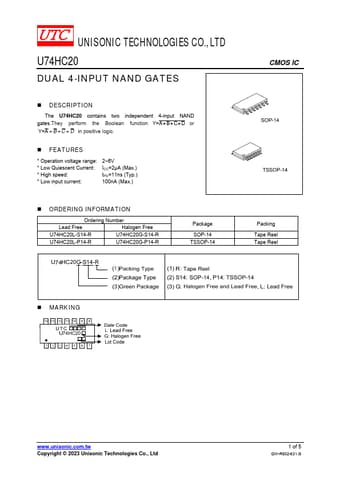

Preview of U74HC20 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC20
Manufacturer
Unisonic Technologies
File Size
198.24 KB
Datasheet
U74HC20-UnisonicTechnologies.pdf
Description
DUAL 4-INPUT NAND GATES
