U74HC00 Datasheet, Gates, UTC

U74HC00 Features

  • Gates
  • Operation Voltage Range: 1.0 V ~7.0 V
  • Low Power Dissipation: ICC=20µA(Max)
  • High Speed: tpd=16ns(Typ) TSSOP-14
  • Pb-free plating product number: U7

PDF File Details

Part number:

U74HC00

Manufacturer:

UTC

File Size:

137.23kb

Download:

📄 Datasheet

Description:

Quadruple 2-input positive-nand gates. The UTC U74HC00 devices contain four independent 2-input NAND gates. They perform the Boolean function Y = A

  • B or Y = A + B

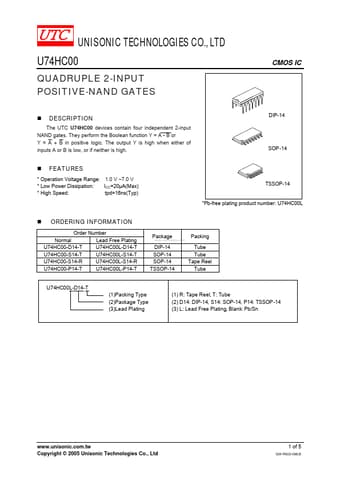

  • Datasheet Preview: U74HC00 📥 Download PDF (137.23kb)
