U74HC157 - QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS / MULTIPLEXERS

U74HC157 Description

UNISONIC TECHNOLOGIES CO., LTD U74HC157 QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS / MULTIPLEXERS * .
SOP-16 CMOS IC The U74HC157 is a quadruple 2-line to 1-line data selectors/multiplexers.

U74HC157 Features

* TSSOP-16
* Wide supply voltage range from 2V to 6V
* Typical tPD at 11ns from A or B to Y at 6V, CL=50pF
* Low power consumption, ICC = 8 μA (MAX) at 6V
* ±6 mA output driver at 5V
* Low Input Current of 0.1uA Max
* ORDERING INFORMATION Ordering Number Lead Free Haloge

📥 Download Datasheet

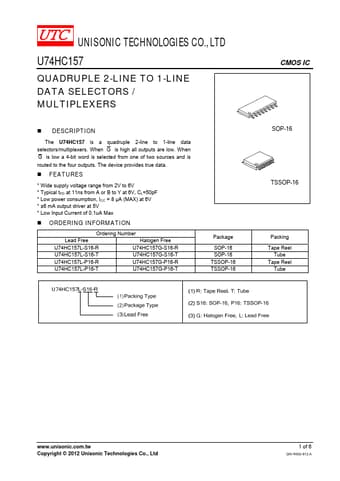

Preview of U74HC157 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC157
Manufacturer
Unisonic Technologies
File Size
259.46 KB
Datasheet
U74HC157_UnisonicTechnologies.pdf
Description
QUADRUPLE 2-LINE TO 1-LINE DATA SELECTORS / MULTIPLEXERS
