U74HC14 - HIGH-SPEED CMOS LOGIC HEX INVERTING SCHMITT TRIGGER

U74HC14 Description

UNISONIC TECHNOLOGIES CO., LTD U74HC14 HIGH-SPEED CMOS LOGIC HEX INVERTING SCHMITT TRIGGER * .
The UTC U74HC14 each contain six inverting Schmitt triggers in one package. FEATURES. Widel.

U74HC14 Features

* Widely range of input rise and fall time
* high noise immunity
* Fan-out parameters(over temperature range) up to 10 LSTTL Loads
* Low power consumption
* Wide range operation 2V ~ 6V CMOS IC DIP-14 SOP-14 TSSOP-14
* ORDERING INFORMATION Ordering Number Lead Free Halog

📥 Download Datasheet

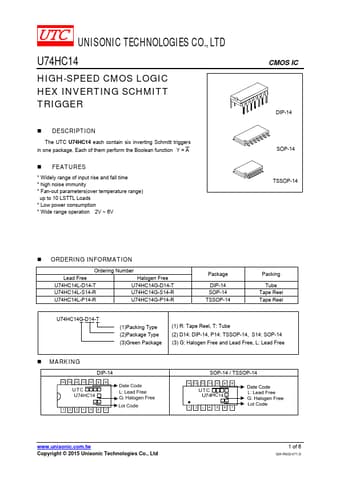

Preview of U74HC14 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC14
Manufacturer
UTC
File Size
188.12 KB
Datasheet
U74HC14_UTC.pdf
Description
HIGH-SPEED CMOS LOGIC HEX INVERTING SCHMITT TRIGGER
