U74HC08 - QUAD 2-INPUT AND GATES

U74HC08 Description

UNISONIC TECHNOLOGIES CO., LTD U74HC08 QUAD 2-INPUT AND GATES * .
The U74HC08 contains four independent 2-input AND gates, perform the Boolean function Y = A. B or Y = A + B in positive logic. FEATUR.

U74HC08 Features

* Operation Voltage Range:
* Low Quiescent Current:
* High Speed:
* Low Input Current: 2~6V ICC=2µA (Max) tPD=8ns(Typ) 100nA (Max)
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC08L-D14-T U74HC08G-D14-T - U74HC08G-S14-R - U74HC08G-P14-R Package DIP-

📥 Download Datasheet

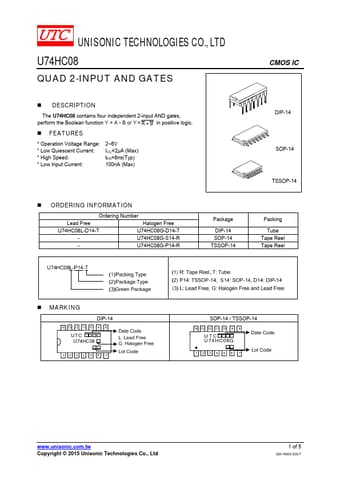

Preview of U74HC08 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC08
Manufacturer
Unisonic Technologies
File Size
198.07 KB
Datasheet
U74HC08-UnisonicTechnologies.pdf
Description
QUAD 2-INPUT AND GATES
