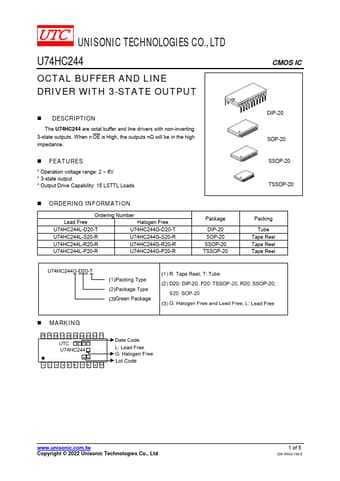

U74HC244 Datasheet, Drivers, Unisonic Technologies

U74HC244 Features

• Drivers
• Operation voltage range: 2 ~ 6V
• 3-state output
• Output Drive Capability: 15 LSTTL Loads
• ORDERING INFORMATION Ordering Number Lead Free Halogen

PDF File Details

Part number:

U74HC244

Manufacturer:

Unisonic Technologies

File Size:

227.40kb

Download:

📄 Datasheet

Description:

Octal buffers and line drivers. The U74HC244 are octal buffer and line drivers with non-inverting 3-state outputs. When n OE is High, the outputs nQ will be in the h

TAGS

U74HC244

Unisonic Technologies
