U74HC273

OCTAL D-TYPE FLIP-FLOPS

U74HC273 Datasheet (249.11 KB)

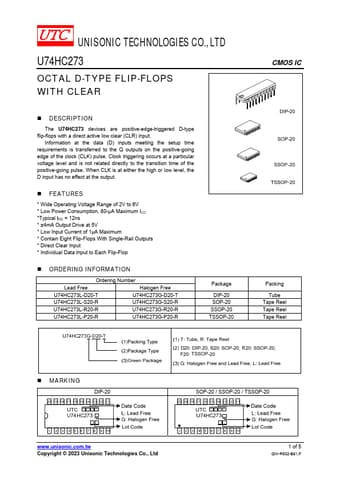

Preview of U74HC273 PDF

Datasheet Details

Part number:

U74HC273

Manufacturer:

UTC

File Size:

249.11 KB

Description:

Octal d-type flip-flops.

U74HC273 Features

* Wide Operating Voltage Range of 2V to 6V

* Low Power Consumption, 80-μA Maximum ICC

* Typical tPD = 12ns

* ±4mA Output Drive at 5V

* Low Input Current of 1μA Maximum

* Contain Eight Flip-Flops With Single-Rail Outputs

* Direct Clear Input

* Individual Data Input to E

U74HC273 General Description

The U74HC273 devices are positive-edge-triggered D-type flip-flops with a direct active low clear (CLR) input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a part.
