U74HC2G125 Datasheet, Driver, Unisonic Technologies

U74HC2G125 Features

  • Driver
  • Wide supply voltage range from 2.0V to 6.0V
  • Symmetrical output impedance
  • High noise immunity
  • Low power consumption
  • Balanced propagation

PDF File Details

Part number:

U74HC2G125

Manufacturer:

Unisonic Technologies

File Size:

218.12kb

Download:

📄 Datasheet

Description:

Dual buffer/line driver. The U74HC2G125 is a high speed, Si-gate CMOS device. The U74HC2G125 provides two non-inverting buffer/line drivers with 3-state outpu

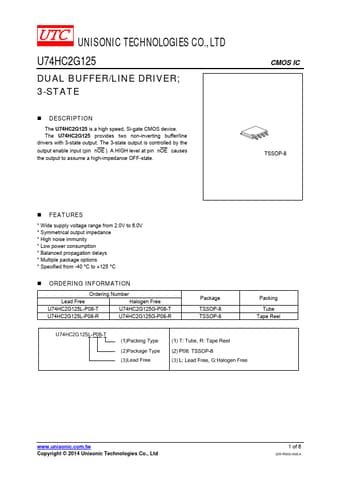

Datasheet Preview: U74HC2G125 📥 Download PDF (218.12kb)
Page 2 of U74HC2G125 Page 3 of U74HC2G125
