U74HC2G00 - 2-INPUT NAND GATE

U74HC2G00 Description

UNISONIC TECHNOLOGIES CO., LTD U74HC2G00 2-INPUT NAND GATE * .
The UTC U74HC2G00 is a high-speed CMOS device which provides 2-input NAND gates. FEATURES. Operation Voltage Range: 2. Low P.

U74HC2G00 Features

* Operation Voltage Range: 2.0~6.0V
* Low Power Dissipation: ICC=10μA (Max. )
* High Speed: tpd=9ns (VCC=4.5V, CL=50pF)
* ORDERING INFORMATION Order Number Lead Free Halogen Free U74HC2G00L-SM1-R U74HC2G00G-SM1-R Package MSOP-8 CMOS IC Packing Tape Reel
* MARKING www

📥 Download Datasheet

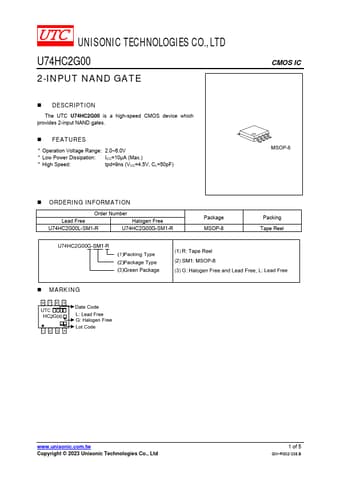

Preview of U74HC2G00 PDF
datasheet Preview Page 2 datasheet Preview Page 3
