U74HC4060 14-STAGE ASYNCHRONOUS BINARY COUNTERS/OSCILLATORS

The U74HC4060 are high-speed Si-gate CMOS device. The U74HC4060 devices consist of an oscillator section and 14 ripple-carry binary counter stages. The oscillator configuration allows design of erther RC or crystal oscillator circuits with three oscillator terminals (CLKI, CLKO, CLKO) , ten buffered.

U74HC4060 Features

* Operate from 2.0V to 6.0V

* Low Input Current:1.0uA

* Outputs Can Drive Up To 10 LSTTL Loads

* Low Power Consumption ,80uA Max ICC

* 4mA Output Drive at 5V

* Typical tPD=14ns

* Allow Design of Either RC or Crystal Oscillator Circuits SOP-16 TSSOP-16

* ORDERING INF

U74HC4060_UnisonicTechnologies.pdf

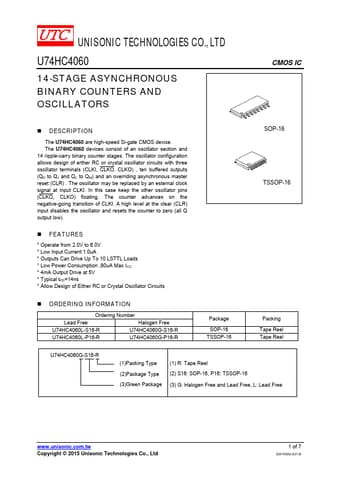

U74HC4060 Datasheet Preview — Preview of U74HC4060 PDF
