U74HCT541

OCTAL BUFFERS AND LINE DRIVERS

U74HCT541 Datasheet (235.52 KB)

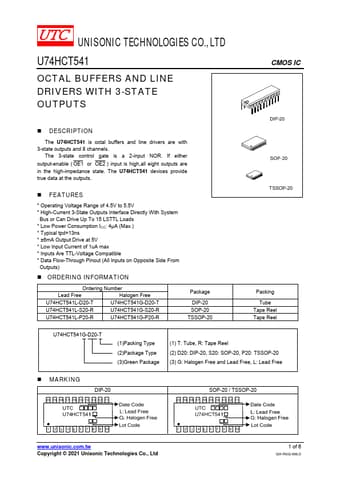

Preview of U74HCT541 PDF Datasheet

Datasheet Details

Part number:

U74HCT541

Manufacturer:

Unisonic Technologies

File Size:

235.52 KB

Description:

Octal buffers and line drivers

U74HCT541 Features

* Operating Voltage Range of 4.5V to 5.5V

* High-Current 3-State Outputs Interface Directly With System Bus or Can Drive Up To 15 LSTTL Loads

* Low Power Consumption ICC: 4μA (Max.)

* Typical tpd=13ns

* ±6mA Output Drive at 5V

* Low Input Current of 1uA max

* Inputs Are

U74HCT541 General Description

The U74HCT541 is octal buffers and line drivers are with 3-state outputs and 8 channels. The 3-state control gate is a 2-input NOR. If either output-enable ( OE1 or OE2 ) input is high,all eight outputs are in the high-impedance state. The U74HCT541 devices provide true data at the outputs.
