U74HCT14 Datasheet, Trigger, UTC

U74HCT14 Features

  • Trigger
  • Widely range of input rise and fall time
  • high noise immunity
  • Fan-out parameters(over temperature range) up to 10 LSTTL Loads
  • Low power consumptio

PDF File Details

Part number:

U74HCT14

Manufacturer:

UTC

File Size:

138.71kb

Download:

📄 Datasheet

Description:

High-speed cmos logic hex inverting schmitt trigger. The UTC 74HCT14 each contain six inverting Schmitt triggers in one package. Each of them perform the Boolean function Y=A. FEATURES

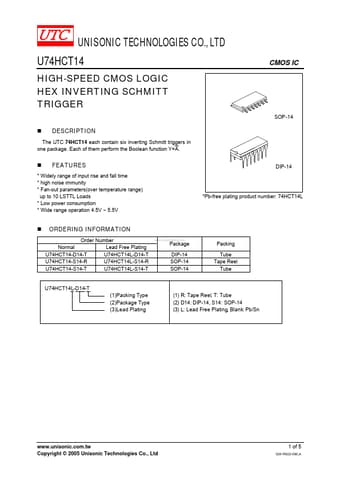

Datasheet Preview: U74HCT14 📥 Download PDF (138.71kb)
Page 2 of U74HCT14 Page 3 of U74HCT14
