U74HCT20 Datasheet, Gates, Unisonic Technologies

U74HCT20 Features

  • Gates
  • Operation Voltage Range: 4.5V~5.5V
  • Low Quiescent Current: ICC=2μA(Max)
  • High Speed: tPD=16ns @ 4.5V(Typ)
  • Low Input Current: 100nA Max

PDF File Details

Part number:

U74HCT20

Manufacturer:

Unisonic Technologies

File Size:

157.54kb

Download:

📄 Datasheet

Description:

Dual 4-input nand gates. The U74HCT20 contains two independent 4-input NAND gates. They perform the Boolean function Y=A

  • B
  • C
  • D

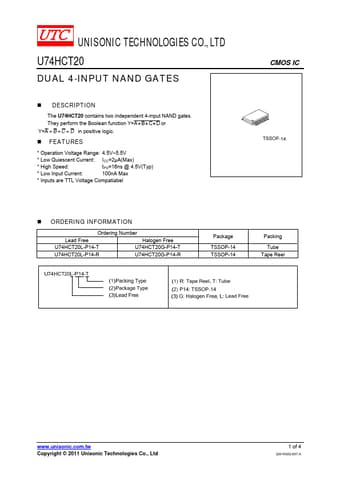

  • Datasheet Preview: U74HCT20 📥 Download PDF (157.54kb)
