U74HCT125 - QUADRUPLE BUS BUFFER GATES

Product Overview

Unisonic Technologies

Datasheet Details

Part number	U74HCT125
Manufacturer	Unisonic Technologies
File Size	240.11 KB
Description	QUADRUPLE BUS BUFFER GATES
Datasheet	U74HCT125 Datasheet

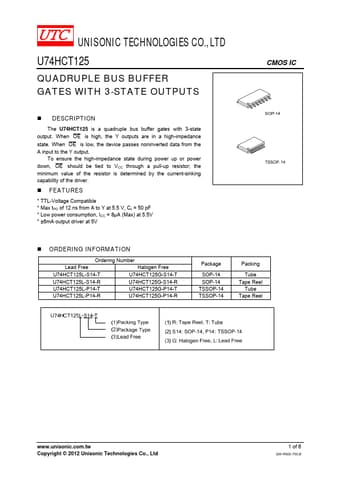

Additional preview pages of the U74HCT125 datasheet.

Product details

Description

CMOS IC The U74HCT125 is a quadruple bus buffer gates with 3-state output.When OE is high, the Y outputs are in a high-impedance state.When OE is low, the device passes noninverted data from the A input to the Y output.To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pull-up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Features

ES.
TTL-Voltage Compatible.
Max tPD of 12 ns from A to Y at 5.5 V, CL = 50 pF.
Low power consumption, ICC = 8μA (Max) at 5.5V.
±6mA output driver at 5V.
